NovelLife Tube Clock APP Instructions

Most Importance need to know!!!

1.the control app please search"NovelLife Tube" in google play(android phone canalso download it at here: android app) or app store(iphone) to download and install

2. the Clock wifi "NovelLifeTube" is free wifi without password, so when you connect it first time, please must turn off or forget your home wifi firstly, so that the cell phone can connect to the clock wifi"NovelLifeTube" successfully.

3.the clock support 12/24 hours time display mode according to your cell phone, if your cell phone is 12 hours time mode when you set the clock via app, the clock will become 12 hours too.

4.the clock only stored 2 time display styles, more 27 styles is in the app and it need you use the app to send the style

Assemble video please visit youtube:https://youtu.be/EudBE27DZ5k

Wifi connection video please visit youtube: https://youtu.be/LCJBx2-uOWU

Clock Button Operation Video please visit youtube:https://youtu.be/IiHzt-nekzQ

Display your own numbers please visit youtube:https://youtu.be/C6bBARUxSCw

Display electronic album please visit youtube:https://youtu.be/vfu09eh2Dpc

Change display number styple please visit youtube:https://youtu.be/Wu_bTH5uGl4



the controll app please search"NovelLife Tube" in your app store



1. Clock Assemble.

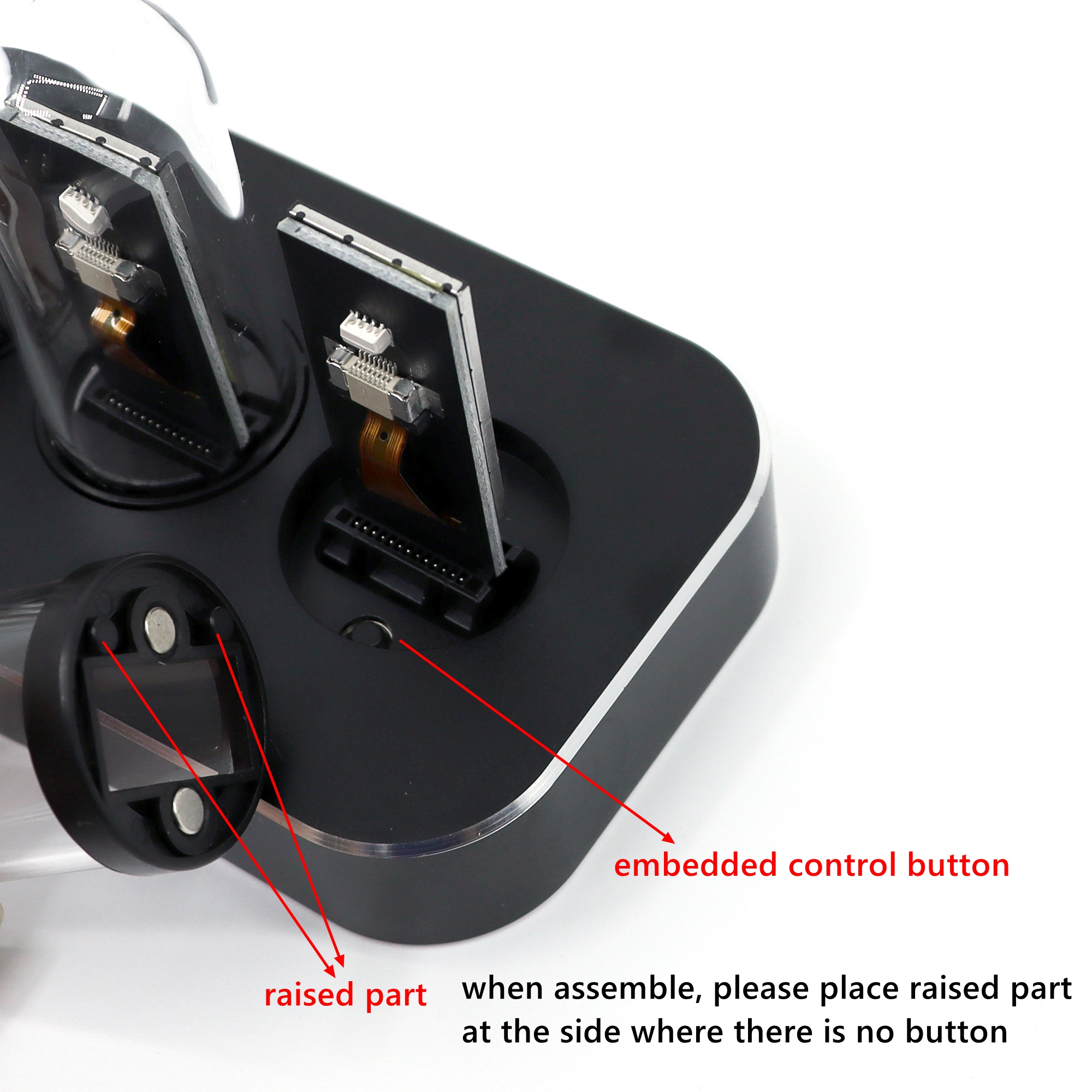

Due to the base embedded control button, the glass case bottom one side has the raised part which should be placed at the side without the button





Clock Button Control

at the display mode, click any glass case will enter the menu



② press it will enable you calibrate the date

③ press it will enable you change the background RGB bulb flashing mode

④ press it will enable you change the time display mode

⑤ press it will enable you turn on /off the screen

⑥ press it will enable you exit the menu



after press ④ will enter the below picture



① press it to select the numbers background, and the nearby ② will show the selected background, then press ⑤ /⑥to save or exit the set

③ press it will change the clock function with "display time, display time and date, stopwatch, display your pictures" and the nearby ④ screen will each the selected function,  press ⑤ /⑥to save or exit the set





APP Control Instructions



① to control the app connect the clock wifi"NovelLifeTube"

② is used to set the display mode with "Time Mode"(only display time); "Time and Date Alternation"(will display the time and date alternately); "Custom album"(set the clock to only display the 6pcs picture you unloaded as a electronic album)

③is used to change clock display number background, there are built-in 27 types can be selected, please click icon to open the selection menu

④ is used to DIY the album display picture s

⑤ is used to change the background RGB bulb brightness with 0-10 class(0 means turn off the background lights, 10 means the highest brightness), change the background RGB bulb flashing mode with 3 types and RGB bulb colors

⑥ is the stopwatch and Countdown function

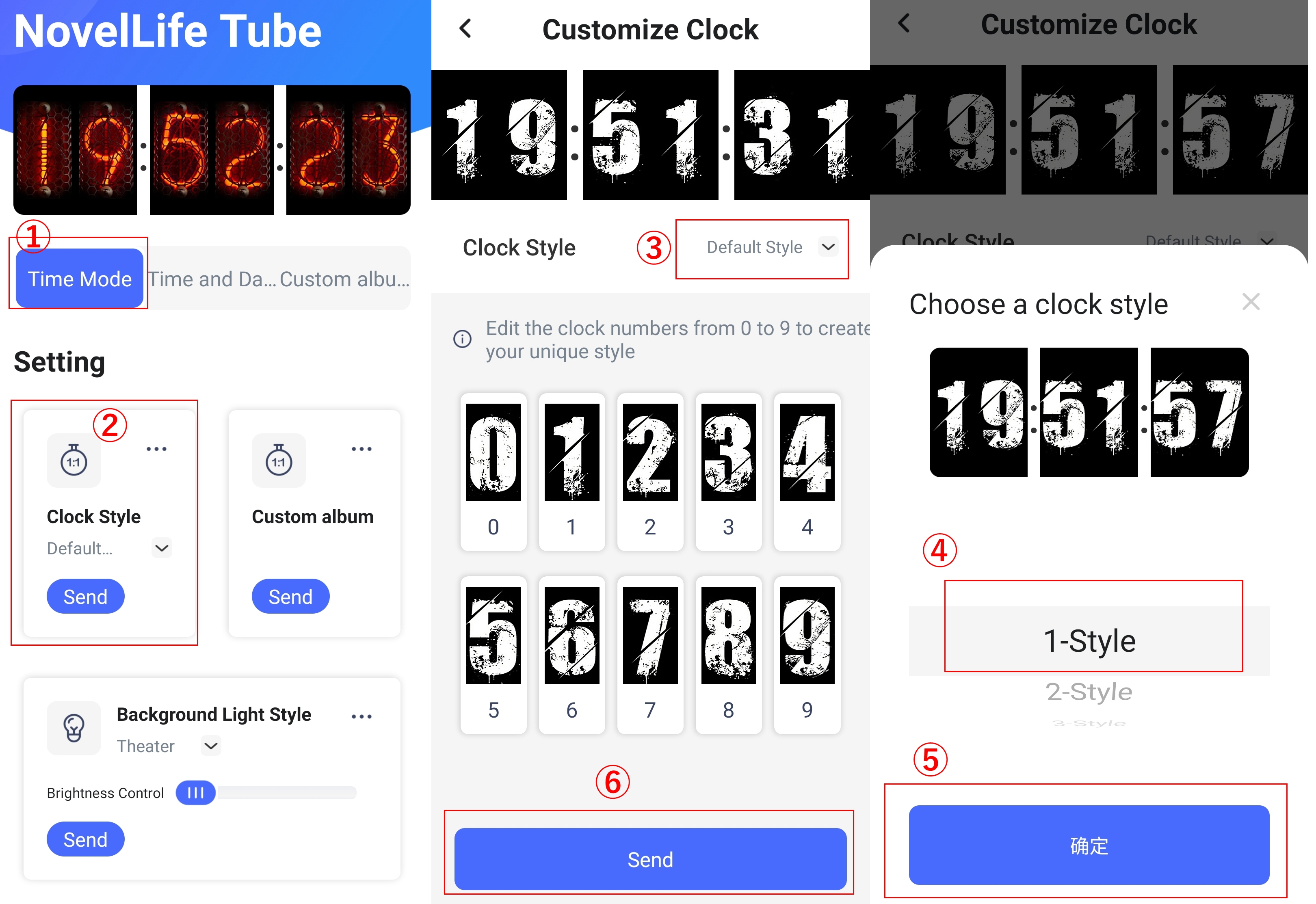

How to select the clock number display styles

Firstly you need set clock at① as "Time Mode" , then click the ②'s clock icon to open the right③ clock syle selection menu, and click ③ to enter the style selection and select the syle you like and click ⑤ to confirm, then click ⑥ to send it to the clock and waiting the sending to finish it.



How to set clock display your own time numbers

Firstly you need design 10 numbers from 0-9, and the picture size must be 24bit BMP type file with 135X240 pixel size

Secondly set clock at① as "Time Mode"

Thirdly click the ②'s clock icon to open the right clock syle selection menu, the long press each number picture it will show you the right dialog and click yes to delete, and the number will become blank as ④ , long press the blank number will open the right dialog and upload the number pictures, after loaded, click "send" to finish









How to set the clock as the electronic album

Firstly you need set clock at① as "Time Mode" , then click the ②'s clock icon to open the right③ dialog, and long press the blank picutre to upload the prepeared the pictures and click "send" to finish











How to change the clock RGB lights

at the background menu area cllick ① the "∇" to open the LED flashing mode with 4 selections;

 click the ②'s bulb icon to set the RGB light color;

Slick ③ to set the RGB light brightness





if you can not set successfully during the operation, or click the app but the clock do not act please turn off the clock(cut off the clock power supply) then turn on again to repeat the operation
